Eduard Robots next to each other in different colors. From left to right: yellow, fluorescent red, red, green, blue.

tech specs

Primary applications▪ Examination of actuator functionality
▪ Assessment of fleet management systems
▪ Review and analysis of algorithms
▪ Investigation of sensor performance
▪ Examination of actuator functionality
▪ Profitability assessment of automated guided vehicles
▪ Educational tool for mobile robotics and essential electronics
▪ Compact counterpart for research and development of large-scale transportation robots		All Eduards
Connectivity options▪ Wireless network (WiFi)
▪ Wired network (Ethernet)
▪ Universal serial bus (USB 3.0 & 2.0)
▪ 2x Controller area network (CAN)		All Eduards
▪ Raspberry Pi compatible GPIOs: I /O, I2C, SPI, UARTEduard Pi
▪ Arduino UNO compatibile GPIOs: I /O, I2C, SPI, UART▪ Eduard IOT
▪ Eduard IPC
Integreated sensors ▪ 4x Time-of-Flight distance sensors
▪ 6DOF inertial measurement unit (IMU)
▪ Voltage monitoring
▪ Temperature measurement
▪ Build-in high-precision incremental encoder		All Eduards
Operating timeUp to 4 h of driving timeAll Eduards
Charging time3 hAll Eduards
Kinematics▪ Skid steering (off-road Tires)
▪ Mecanum steering (omnidirectional)		All Eduards
Bluetooth-controllerPlayStation® 5 controller
Additional: Steam Deck		All Eduards
Max. speed▪ Mecanum: 0.32 m / s
▪ Off-Road: 0.56 m / s		All Eduards
Payload▪ Mecanum: 10 kg
▪ Off-Road: 5 kg 		All Eduards
Available voltage outputs▪ 19 V DC
▪ 12 V DC
▪ 5 V DC
▪ Battery voltage (around 17.5 V – 30 V)		All Eduards
Battery specification4.5 Ah Nickel-Metal Hydride (NiMH)All Eduards
Size [W x H x T]380 mm × 210 mm × 420 mmAll Eduards
Weight7.6 kgAll Eduards
Primary applications▪ Examination of actuator functionality
▪ Assessment of fleet management systems
▪ Review and analysis of algorithms
▪ Investigation of sensor performance
▪ Examination of actuator functionality
▪ Profitability assessment of automated guided vehicles
▪ Educational tool for mobile robotics and essential electronics
▪ Compact counterpart for research and development of large-scale transportation robots
Connectivity options▪ Wireless network (WiFi)
▪ Wired network (Ethernet)
▪ Universal serial bus (USB 3.0 & 2.0)
▪ 2x Controller area network (CAN)
▪ Raspberry Pi compatible GPIOs: I /O, I2C, SPI, UART (Eduard Pi)
▪ Arduino UNO compatibile GPIOs: I /O, I2C, SPI, UART (Eduard IOT, Eduard IPC)
Integreated sensors ▪ 4x Time-of-Flight distance sensors
▪ 6DOF inertial measurement unit (IMU)
▪ Voltage monitoring
▪ Temperature measurement
▪ Build-in high-precision incremental encoder
Operating timeUp to 4 h of driving time
Charging time3 h
Kinematics▪ Skid steering (off-road Tires)
▪ Mecanum steering (omnidirectional)
Bluetooth-controllerPlayStation® 5 controller
Additional: Steam Deck
Max. speed▪ Mecanum: 0.32 m / s
▪ Off-Road: 0.56 m / s
Payload▪ Mecanum: 10 kg
▪ Off-Road: 5 kg
Available voltage outputs▪ 19 V DC
▪ 12 V DC
▪ 5 V DC
▪ Battery voltage (around 17.5 V – 30 V)
Battery specification4.5 Ah Nickel-Metal Hydride (NiMH)
Size [W x H x T]380 mm × 210 mm × 420 mm
Weight7.6 kg

pictures

Red Eduard front view
Red Eduard with box and equipment
Yellow eduard connectivity options
red Eduard side view
Front lights of Eduard
SIMATIC Iot interfaces and GPIOs
Fluorescent Eduard back lights
Back light of Eduard
Eduard stop switch
green eduard front view
Eduard Arduinocompatible GPIOs
green eduard Mechanum wheel
Eduard on off switch
Fluorescent Eduard side view
red Eduard front side view
Eduard Yellow top view of connectivity options
Green Eduard Wheel and light
green eduard inside
Fluorescent red eduard front side view
Eduard yellow top view mechanum wheels

configurations

NameSystemSoftwarePrizeCall to Action
Eduard IOTSiemens SIMATIC IOT2050 AdvancedDebian 10 Buster4.894,90 €Enquire
Eduard IPCSiemens IPC127EEdge RuntimetbdEnquire
Debian 10 BustertbdEnquire
Siemens IPC227EEdge RuntimetbdEnquire
Debian 10 BustertbdEnquire
Siemens IPC227GEdge RuntimetbdEnquire
Debian 10 BustertbdEnquire
Eduard PiRaspberry Pi 5Debian 10 BustertbdEnquire
NameSystemSoftwarePrize
Eduard IOTSiemens SIMATIC IOT2050 AdvancedDebian 10 Buster4.894,90 €
Eduard IPCSiemens IPC127EEdge Runtimetbd
Debian 10 Bustertbd
Siemens IPC227EEdge Runtimetbd
Debian 10 Bustertbd
Siemens IPC227GEdge Runtimetbd
Debian 10 Bustertbd
Eduard PiRaspberry Pi 5Debian 10 Bustertbd
Enquire

downloads and links

repositories

Check out our repositories on Github. EduArt is a partner of the Open Source initiative.

forum

Check out our forum for further questions and answers.

datasheet

click here to download our datasheet and print it by yourself.

manual

click here to download our user manual and instruction on Eduard.

videos

software development for all skill levels​

Explore software development opportunities at all skill levels with our R&D platform Eduard, featuring NodeRed, Ros1, ROS2, Python, C++, Docker and a comprehensive simulation environment. Whether you’re a beginner or an expert, Eduard provides the tools and resources to improve your skills in various programming languages and frameworks, tailored to support your learning journey.

meet R&D platform Eduard

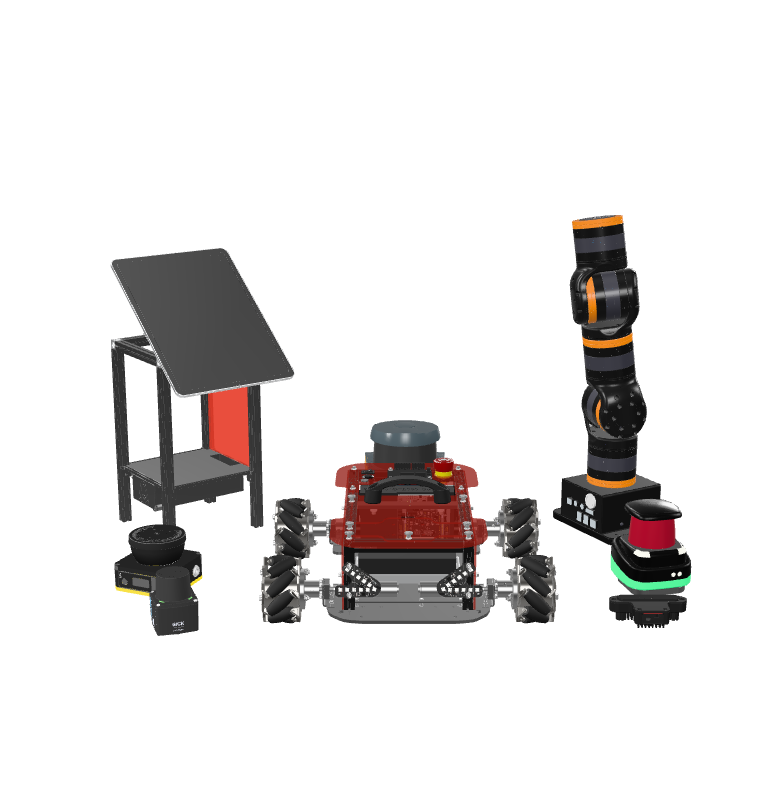

Introducing our advanced mobile robot platform designed specifically for research, development and product verification. This system offers extensive hardware and software expansion capabilities, with components designed to provide countless interface options and configurations.

Eduard

primary applications

Eduard serves a variety of purposes: assessment of fleet management systems, investigation of sensor performance, review and analysis of algorithms, and examination of actuator functionality. It is also ideal for profitability assessment of automated guided vehicles, an educational tool for mobile robotics and essential electronics, and a compact counterpart for research and development of large-scale transportation robots.

off-road or mechanum?

Mecanum wheels enable our robot to move sideways with precision, perfect for indoor use. For outdoor applications, our off-road wheels provide the durability and traction needed to navigate rough terrain effortlessly.


connect anything, anytime​

With various connection options such as WiFi, Ethernet, USB, CAN, and GPIOs, Eduard offers nearly limitless expansion possibilities. These interfaces allow seamless integration of a wide range of peripherals and components to enhance functionality.

precision monitoring – equipped for excellence

Eduard is equipped with a range of sensors for comprehensive monitoring and control: temperature for thermal regulation, voltage for power management, four Time-of-Flight sensors for precise distance measurement, an Inertial Measurement Unit for motion tracking and encoders for accurate position feedback. These sensors ensure optimum performance and reliability in all operations.
